The 'Deboss Depth' Limit: Why Deep Branding Cracks Bio-Materials

"Make it deeper. We want it to look premium." This is the most common feedback I receive from design agencies when sampling recycled leather notebooks. In the world of traditional luxury goods, depth equals quality. But in the world of bio-composites, depth equals destruction.

As a Factory Project Manager, I have seen thousands of dollars of stock ruined because a designer treated recycled leather like virgin PU. The issue is not the machine; it is the material's "Elastic Modulus."

The Elasticity Gap

Virgin PU (Polyurethane) is a flexible plastic. When you press a hot metal stamp into it, it stretches and deforms elastically. Recycled leather, however, is a composite of shredded leather fibers and a binder. It is stiffer and more brittle. When you force it to stretch beyond its limit, it doesn't deform—it snaps.

This snapping manifests as "Stress Whitening" (micro-cracks that look like white dust) or "Thin-Wall Cracking" (where the material actually splits open, revealing the cardboard core underneath).

Diagram comparing deboss stress on PU leather vs. recycled leather. PU deforms elastically; recycled leather shows brittle fracture. — Figure 1: Stress Distribution Analysis. Bio-composites lack the long polymer chains of virgin plastics, making them prone to brittle fracture under high compression.

In practice, this is often where Customization Process decisions start to be misjudged. Designers specify a "0.5mm deboss" because that is what they used for their last PVC project. But on a 1.2mm recycled leather cover, 0.5mm is nearly 42% of the material thickness. That is deep into the danger zone.

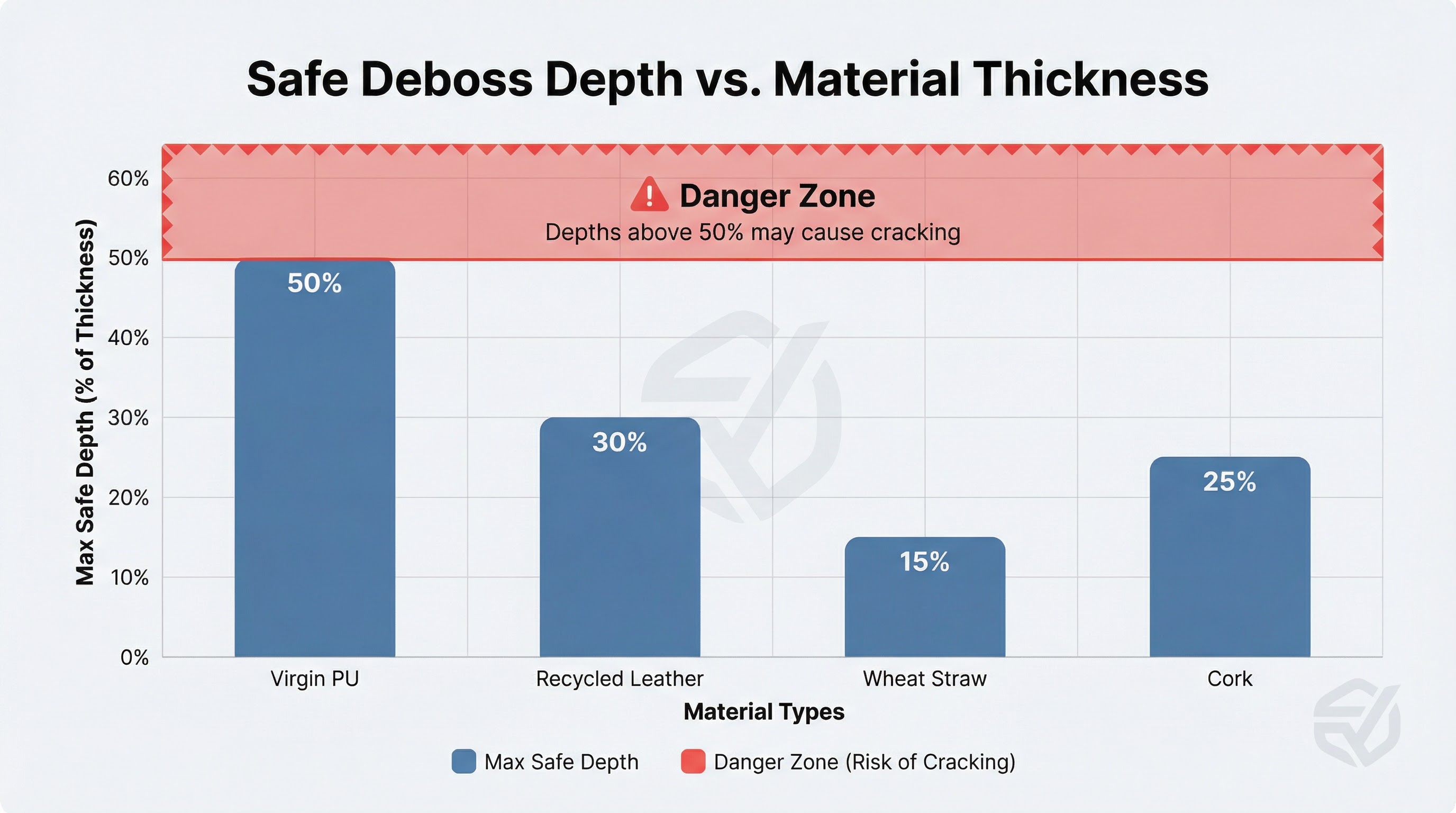

Chart showing safe deboss depth percentages for different materials. Virgin PU allows 50%, while Wheat Straw only allows 15%. — Figure 2: The Safe Depth Threshold. For bio-materials, we must limit deboss depth to 15-30% of material thickness to prevent structural failure.

So, how do we achieve a premium look without breaking the product?

Switch to Thermo-Deboss: Instead of relying on pressure (depth), rely on heat. Thermo-reactive binders change color when heated, creating a high-contrast, two-tone effect that looks deep but is actually quite shallow.
Respect the 30% Rule: Never specify a deboss depth greater than 30% of the material's total thickness. For a standard notebook, this means 0.3mm max.
Use Beveled Dies: Ask your factory to use a stamp with beveled (sloped) edges rather than sharp 90-degree cliffs. This distributes the stress more evenly.

Sustainable design requires a shift in mindset. We are not just swapping materials; we are swapping physics. Respect the material's limits, and it will give you a beautiful, durable result. Force it to behave like plastic, and it will break.
